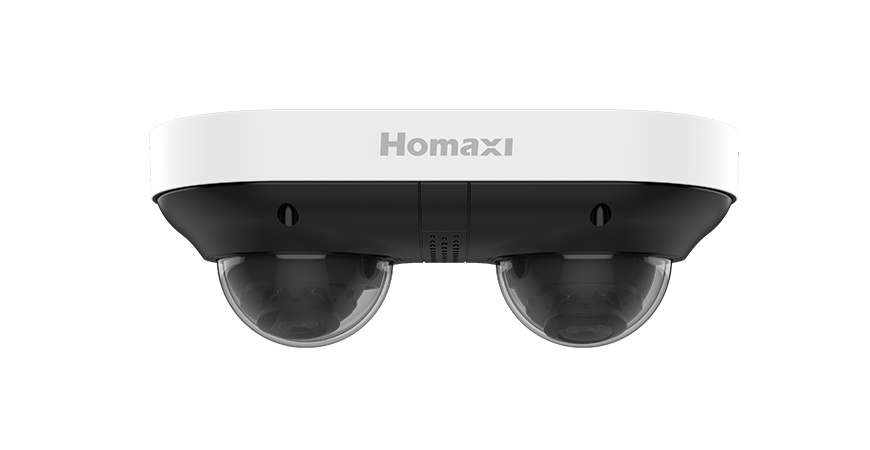

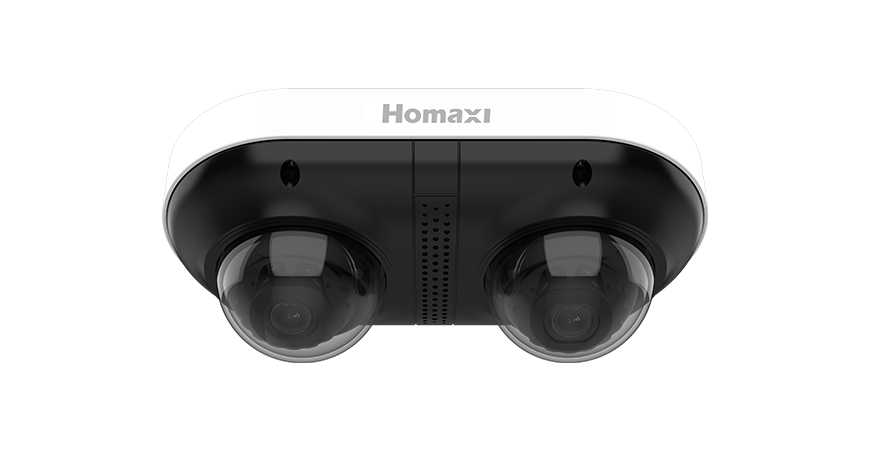

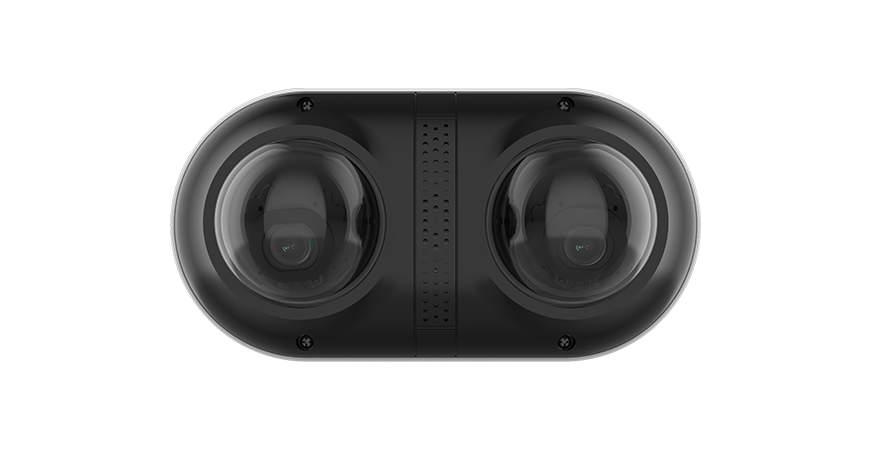

IPC8MSD2R8-I2
IPC8MSD2R8-I2
- High quality imaging with 4 MP resolution
- 3D DNR technology delivers clean and sharp images
- Supports 2-channel WDR to realize clear imaging against strong back light
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Built-in dual-microphones for real-time audio security
- Easy installation with Power over Ethernet (PoE) technology
|
Camera |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS Sensor |
|
Min. Illumination |
Color: 0.006 Lux ( F1.6, AGC ON ) , 0 Lux with IR lights on |
|
Illumination Distance |
30m ( IR light ) |
|
Strobe Light |
N/A |
|
Smart IR |
Support |
|
Pan/Tilt/Rotation Range |
Pan: -90° ~ 90° |
|
Lens |
|
|
Focal Length |
2.8mm |
|
Aperture |
F1.6 |
|
FOV |
2.8mm@F1.6 Horizontal FOV: 101°, Vertical FOV: 55°, Diagonal FOV: 121° |
|
Lens Mount |
M12 |
|
DORI |
|
|
DORI |
2.8mm@F1.6, D:71m , O:28.4m , R:14.2m , I:7.1m |
|
Compression Standard |
|
|
Video Compression |
H.264/H.264+/H.265/H.265+/MJPEG(sub stream） |
|
H.264 Codec profile |
Base/Main/High profile |
|
H.265 Codec profile |
Main Profile |
|
Video Bit Rate |
83 Kbps ~ 10Mbps |
|
Triple Streams |
Support |
|
Audio Compression |
G.711A/G.711U |
|
Audio Bit Rate |
64Kb |
|
Image |
|
|
Max. Image Resolution |
4MP(2688 × 1520) |
|
Main Stream |
50Hz: |
|
Sub Stream |
50Hz: 25fps 720P (1280 × 720) 25fps D1 (704 × 576) ,25fps CIF(352 × 288) 60Hz: 30fps 720P (1280 × 720) 30fps D1 (704 × 480) , 30fps CIF (352 × 240) |
|
Sub Stream |
50 Hz: 25 fps (704 × 576, 640 × 480) |
|
Third Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) |
|
Image Setting |
Brightness/Contrast/Saturation/Hue/Sharpness |
|
Shutter Time |
Auto/Manual, 1/3~1/100000s |
|
Day/Night |
IR Cut Filter |
|
Wide Dynamic Range |
120 dB |
|
Digital noise reduction |
2D/3D DNR |
|
BLC |
Support |
|
HLC |
Support |
|
ROI |
Support |
|
Rotate |
Support |
|
Smart Feature |
|
|
Basic Event |
Motion detection, Video Shelter |
|
Smart Event |
Motion detection (support alarm triggering by specified target types (human, vehicle, and bike) ) |
|
Face Detection |
Support |
|
People Counting |
Support one channel |
|
Loitering Detection |
Support |
|
Network |
|
|
Network Storage |
NAS ( NFS, SMB/CIFS ) ,ANR |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, Cloud |
|
System compatibility |
Onvif (Profile S，G，T), API |
|
Security |
Onvif (Profile S，G，T), API |
|
Web Browsers |
Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+/Safari Local service: Chrome 57.0+, Firefox 52.0+ |
|
User |
Up to 40 Users |
|
Mobile Surveillance |
IOS, Android |
|
Active Deterrence |
|
|
Red/Blue Light Warning |
N/A |
|
Sound Warning |
Support |
|
Interface |
|
|
Communication interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board storage |
up to 256GB |
|
MIC |
Support |
|
Speaker |
Support |
|
Audio I/O |
1/1 |
|
Alarm I/O |
1/1 |
|
Reset button |
Support |
|
General |
|
|
Operating Conditions |
( -40°C ~ 60°C ) ( -40°F ~ 140°F ) Humidity 95% or less ( non-condensing ) |
|
Power Supply |
DC12V ± 25% |
|
POE |
PoE ( 802.3 at ) |
|
Power Consumption |
MAX. 12W |
|
Protection Level |
IP67,IK10 |
|
Material |
Metal |
|
Dimensions |
202 × 105 × 71.2 mm |
|
Gross Weight |
1130 g |
