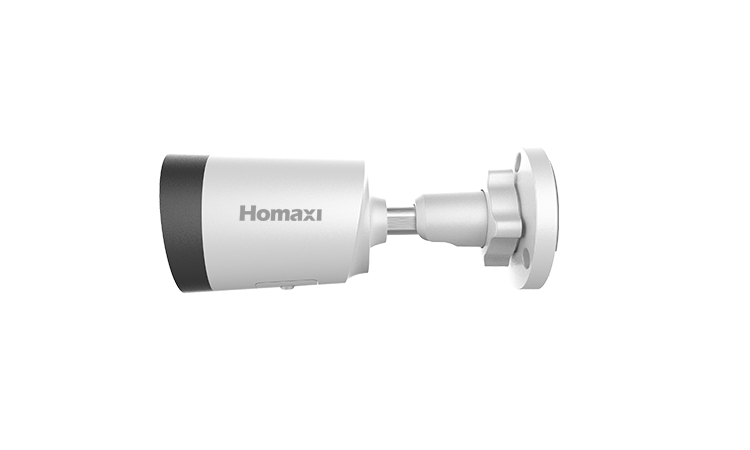

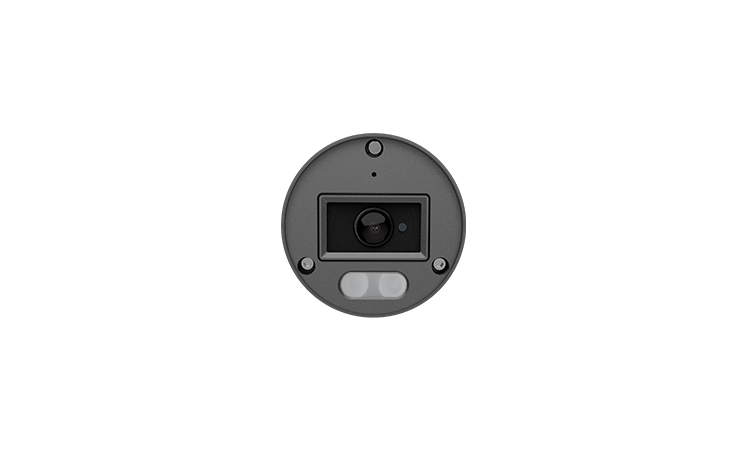

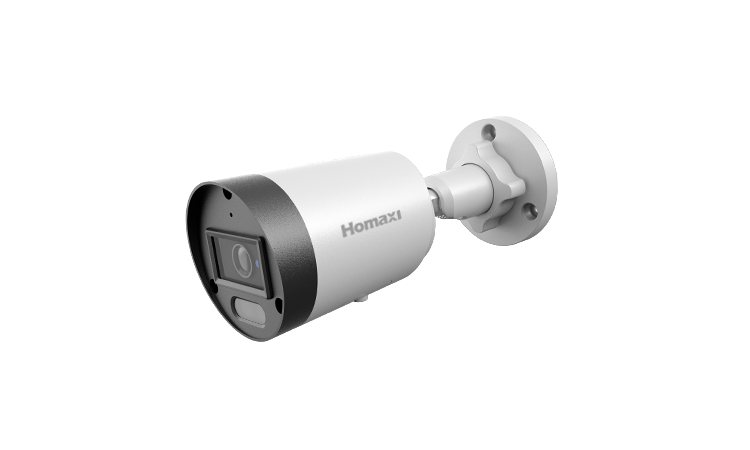

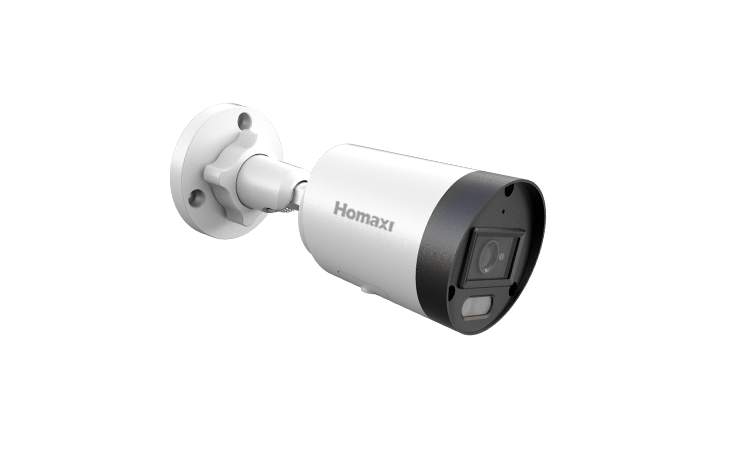

IPC4BF2R8-I1-TMCR

Camera

Image Sensor

1/2.8" Progressive Scan CMOS Sensor

Min. Illumination

Color: 0.006 Lux (F1.6, AGC ON) , 0 Lux with light

Illumination Distance

30m (IR light)
30m (Warm light)

Smart IR

Support

Pan/Tilt/Rotation Range

Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°

Lens

Focal Length

2.8 mm

Aperture

F1.6

FOV

2.8 mm @ F1.6 Horizontal FOV: 106°, Vertical FOV: 58°, Diagonal FOV: 125°

Lens Mount

M12

DORI

DORI

2.8 mm, D: 88 m, O: 34.7 m, R: 17.4 m, I: 8.7 m

Compression Standard

Video Compression

H.264/H.264+/H.265/H.265+/MJPEG

H.264 Codec Profile

Base/Main/High profile

H.265 Codec Profile

Main Profile

Video Bit Rate

11 Kbps ~ 11Mbps

Triple Streams

N/A

Audio Compression

G.711A, G.711U

Audio Bit Rate

64 Kbps


Max. Image Resolution

8MP (3840 × 2160)

Main Stream

50Hz: 20fps 8MP (3840 × 2160) ,
          20fps 6MP (3200 × 1800) , 25fps 5MP (3072 × 1728)
          25fps 4MP (2560 × 1440) , 25fps 1080P (1920 × 1080)
60Hz: 20fps 8MP (3840 × 2160) ,
         20fps 6MP (3200 × 1800) , 30fps 5MP (3072 × 1728)
         30fps 4MP (2560 × 1440) , 30fps 1080P (1920 × 1080)

Sub Stream

50Hz: 25fps 720P (1280 × 720)
          25fps D1 (704 × 576) , 25fps CIF (352 × 288)（Default D1）
60Hz: 30fps 720P (1280 × 720)
          30fps D1 (704 × 480) , 30fps CIF ( 352 × 240)

Third Stream

N/A

Image Setting

Brightness/Contrast/Saturation/Hue/Sharpness

Shutter Time

Auto/Manual, 1/3~1/100000s

Day/Night

IR cut filter

Wide Dynamic Range

120 dB

Digital Noise Reduction

2D/3D DNR

BLC

Support

HLC

Support

ROI

Support

Rotate

Support

Smart Feature

Basic Event

Motion detection, video tampering

Smart Event

Smart motion detection, line crossing, area intrusion, (support alarm triggering by specified target types (human and vehicle) )

Face Detection

N/A

Network

Network Storage

NAS (NFS, SMB/CIFS) , ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P

System Compatibility

Onvif (Profile S, Profile G, T), SDK

Security

Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

User

Up to 10 users

Web Browsers

Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+

Mobile Surveillance

IPhone, Android devices

Interface

Communication Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-board Storage

Up to 256GB

MIC

Support

Speaker

N/A

Audio I/O

N/A

Alarm I/O

N/A

Reset Button

Support

General

Operating Conditions

(-40°C ~ 60°C) (-40°F ~ 140°F)
Humidity 95% or less (non-condensing)

Power Supply

DC12V ± 25%

POE

PoE (802.3 af)

Power Consumption

MAX. 8 W

Protection Level

IP67

Material

Metal

Dimensions

Φ2.63'' × 6.93'' (68 × 172.3 mm)

Gross Weight

1.10 lb (500 g)
