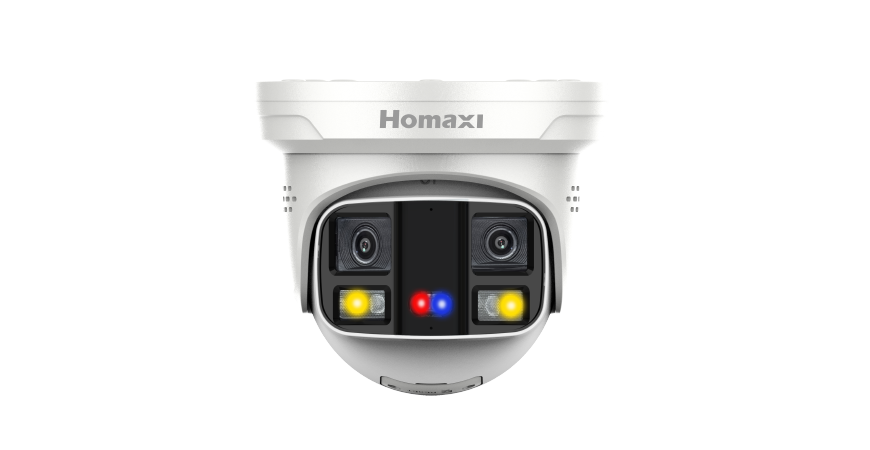

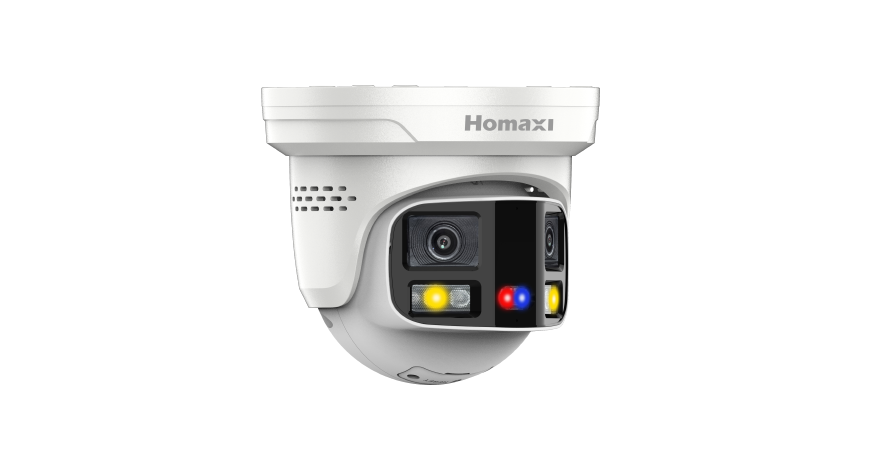

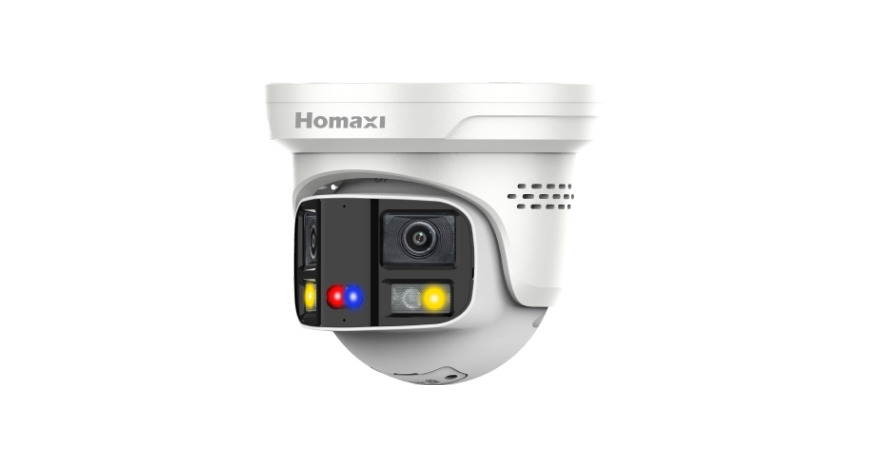

IPC8MST2R8-AD-TPMSC
IPC8MST2R8-AD-TPMSC
- High quality imaging with 8MP resolution
- Dual 1/2.7" Progressive Scan CMOS Sensor
- Clear imaging against strong backlight due to 120dB WDR technology
- Focus on Person and Vehicle、motorcycle classification based on deep learning
- Smart Dual Light: Integrates IR and White lights, 3 supplemental lighting modes
- Built-in arrayed dual-microphone for real-time high-quality audio security
- Active red and blue strobe light, speaker and audio alarm to warn intruders off
- Water and dust resistant (IP67)
|
Camera |
|
|
Image Sensor |
Dual 1/2.7" Progressive scan CMOS Sensor |
|
Min. Illumination |
0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
|
Illumination Distance |
Dual light IR 30 m, Warm Light 30 m |
|
Pan/Tilt/Rotation Range |
Pan: 0° ~ 360° |
|
Lens |
|
|
Focal Length |
2.8 mm |
|
Aperture |
F1.4 |
|
FOV |
Horizontal: 180°, Vertical: 86° |
|
Compression Standard |
|
|
Video Compression |
H.264/H.264+/H.265/H.265+/MJPEG |
|
H.264 Codec Profile |
Base/Main/High profile |
|
H.265 Codec Profile |
Main Profile |
|
Video Bit Rate |
128 Kbps to 16 Mbps |
|
Triple Streams |
Support |
|
Audio Compression |
G.711A, G.711U |
|
Audio Bit Rate |
64 Kbps |
|
Image |
|
|
Max. Image Resolution |
4096 (H) × 1860 (V) |
|
Main Stream |
4096 × 1860@(1–20 fps ) |
|
Sub Stream |
1200 × 530@(1–20 fps) |
|
Third Stream |
1920 × 860@(1–20 fps) |
|
Image Setting |
Brightness/Contrast/Saturation/Hue/Sharpness |
|
Shutter Time |
Auto/Manual, 1/3 ~ 1/100000s |
|
Day/Night |
24/7 Color imaging |
|
Wide Dynamic Range |
130dB |
|
Digital Noise Reduction |
3D DNR |
|
BLC |
Support |
|
HLC |
Support |
|
ROI |
Support |
|
Smart Feature |
|
|
Basic Event |
Motion detection, Video Shlter |
|
Smart Event |
Smart motion detection, Line crossing, intrusion, region entrance, region exiting ( support alarm triggering by specified target types ( human and vehicle, motorcycle ) ) |
|
Network |
|
|
Network Storage |
NAS (NFS, SMB/CIFS) |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
|
System Compatibility |
Onvif ( Profile S, G,T ) , CGI, SDK |
|
Security |
HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
|
User |
Up to 40 users |
|
Web Browsers |
Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ |
|
Mobile Surveillance |
IOS, Android |
|
Active Deterrence |
|
|
Red/Blue Light Warning |
Support |
|
Sound Warning |
Support |
|
Interface |
|
|
Communication Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-board Storage |
Up to 256GB |
|
MIC |
Built-in dual mic |
|
Speaker |
Support，built-in speaker |
|
Audio I/O |
1/1 |
|
Alarm I/O |
1/1 |
|
Reset Button |
Support |
|
General |
|
|
Operating Conditions |
(-40°C ~ 60°C) (-40°F ~ 140°F) |
|
Power Supply |
DC12V ± 25% |
|
POE |
PoE (802.3 af) |
|
Power Consumption |
Basic: 4.7 W (12 VDC); 6.1 W (PoE) Max: 11 W (12 VDC); 14.3 W (PoE) |
|
Protection Level |
IP67 |
|
Material |
Metal |
|
Dimensions |
Φ140.5 x 123.3mm (5.53" × 4.85") |
|
Gross Weight |
1050 g |
