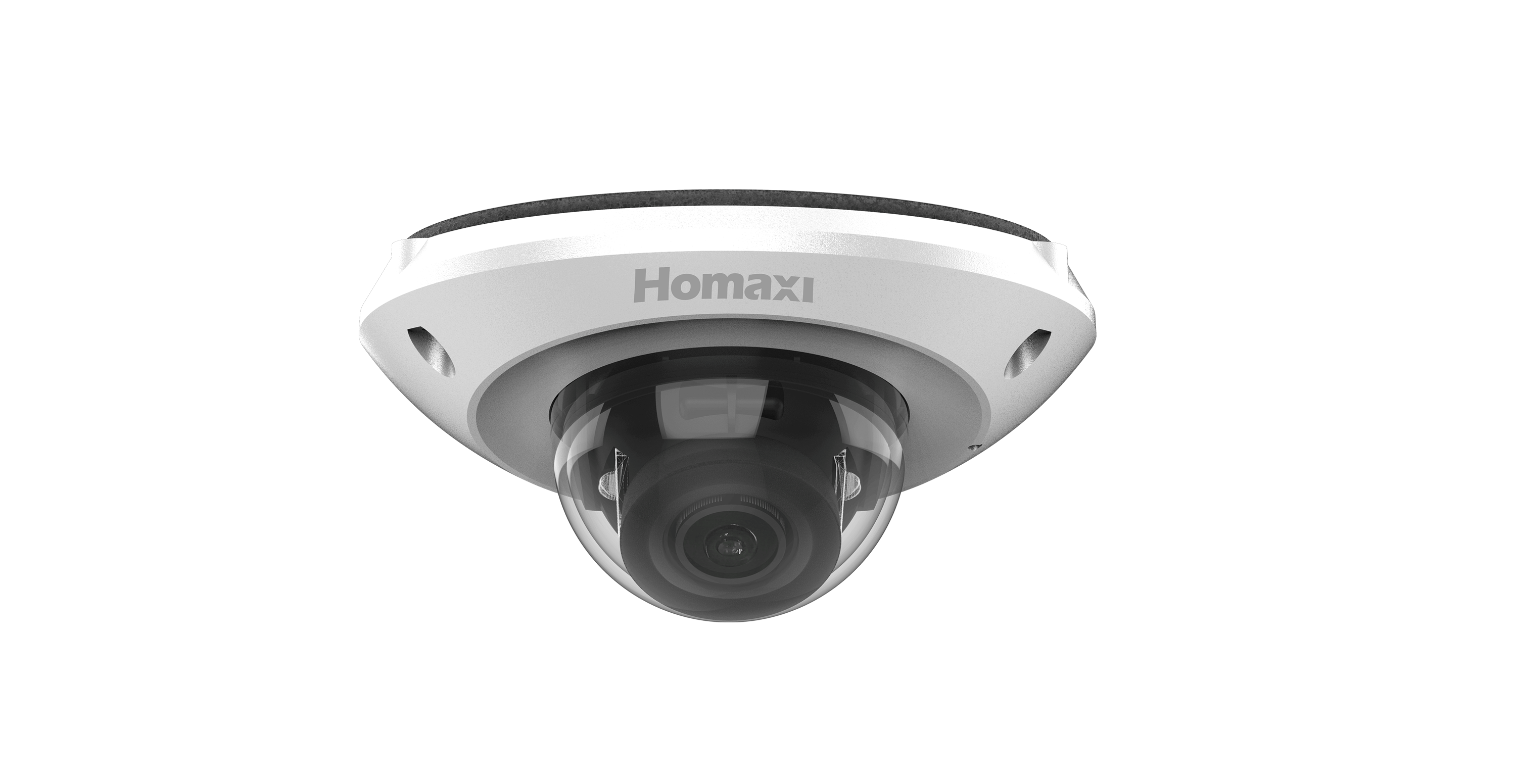

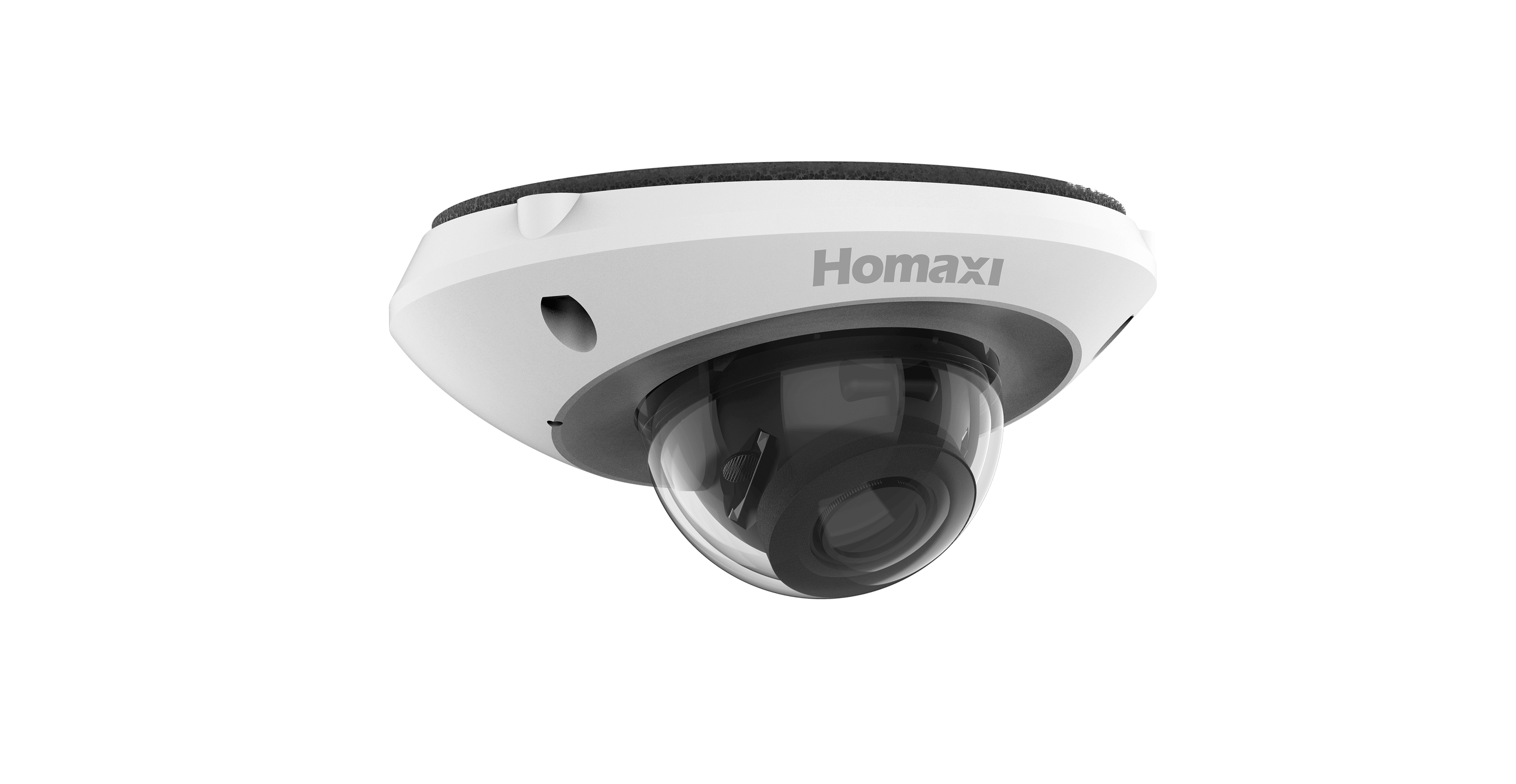

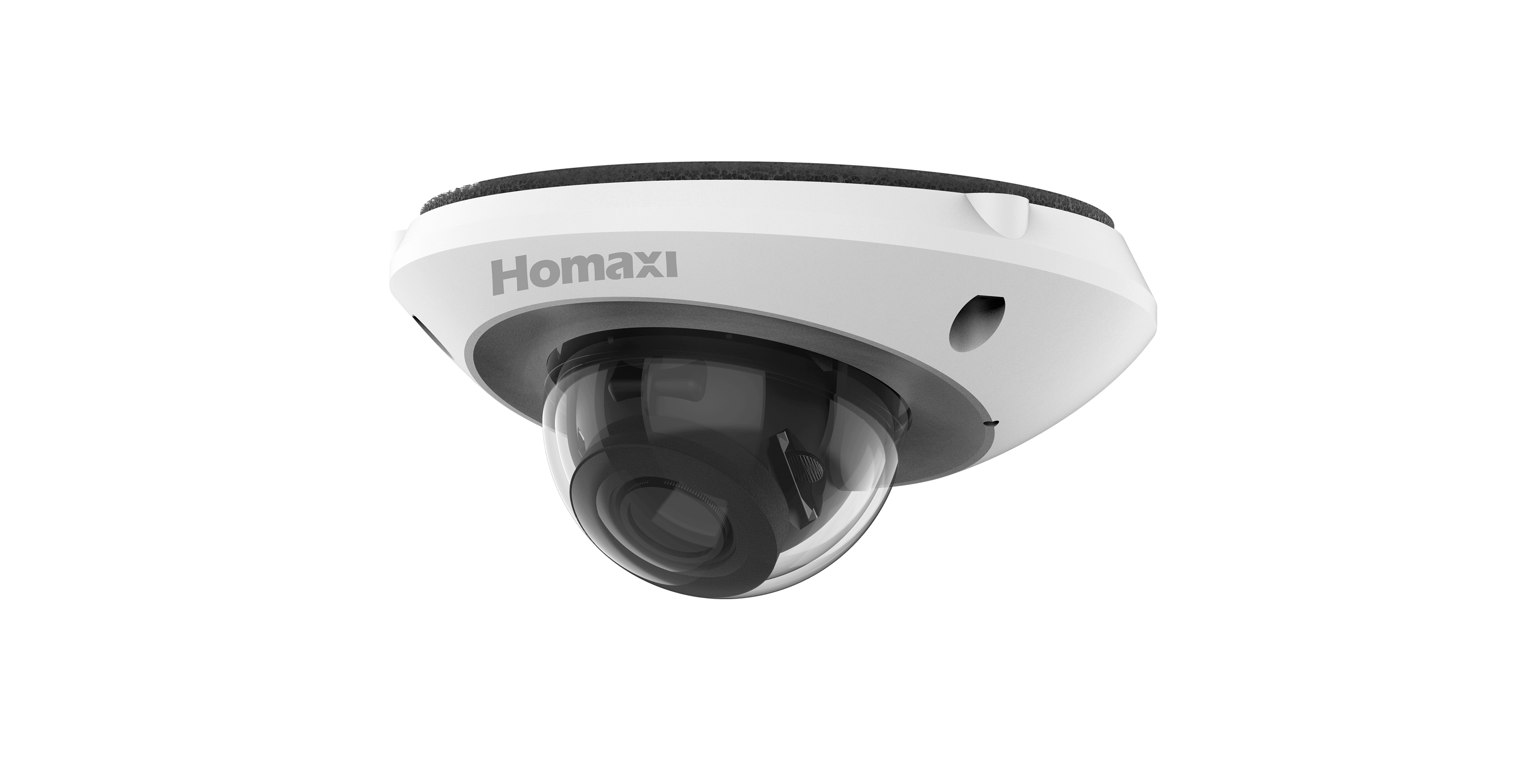

IPC6DF1R5-I2-TPM
IPC6DF1R5-I2-TPM
- High quality imaging with 5MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Built-in microphone for real-time audio security
|
Camera |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS Sensor |
|
Min. Illumination |
Color: 0.006 Lux (F1.6 , AGC ON) , 0 Lux with IR lights on |
|
Illumination Distance |
20m (IR light) |
|
Pan/Tilt/Rotation Range |
Pan: 0° ~ 30° |
|
Lens |
|
|
Focal Length |
2.8 mm |
|
Aperture |
F1.6 |
|
FOV |
2.8 mm @ F1.6 Horizontal FOV: 106°, Vertical FOV: 57.5°, Diagonal FOV: 126° |
|
Lens Mount |
M12 |
|
DORI |
|
|
DORI |
2.8mm, D: 65 m, O: 25.1 m, R: 12.6 m, I: 6.3 m |
|
Compression Standard |
|
|
Video Compression |
H.264/H.264+/H.265/H.265+/MJPEG |
|
H.264 Codec Profile |
Base/Main/High profile |
|
H.265 Codec Profile |
Main Profile |
|
Video Bit Rate |
11 Kbps ~ 10Mbps |
|
Triple Streams |
Support |
|
Audio Compression |
G.711A, G.711U |
|
Audio Bit Rate |
64 Kbps |
|
Image |
|
|
Max. Image Resolution |
5MP ( 2880 × 1620 ) |
|
Main Stream |
50Hz: 25fps 5MP ( 2880 × 1620 ) 25fps 4MP ( 2688 × 1520 ) 25fps 4MP ( 2560 × 1440 ) 25fps 1080P ( 1920 × 1080 ) 60Hz: 30fps 5MP ( 2880 × 1620 ) 30fps 4MP ( 2688 × 1520 ) 30fps 4MP ( 2560 × 1440 ) 30fps 1080P ( 1920 × 1080 ) |
|
Sub Stream |
50Hz: 25fps 720P ( 1280 × 720 ) 25fps D1 ( 704 × 576 ) , 25fps CIF ( 352 × 288 ) 60Hz: 30fps 720P ( 1280 × 720 ) 30fps D1 ( 704 × 480 ) , 30fps CIF ( 352 × 240 ) |
|
Third Stream |
50Hz: 25fps CIF ( 352 × 288 ) 60Hz: 30fps CIF ( 352 × 240 ) |
|
Image Setting |
Brightness/Contrast/Saturation/Hue/Sharpness |
|
Shutter Time |
Auto/Manual, 1/3 ~ 1/100000s |
|
Day/Night |
IR cut filter |
|
Wide Dynamic Range |
120 dB |
|
Digital Noise Reduction |
2D/3D DNR |
|
BLC |
Support |
|
HLC |
Support |
|
ROI |
Support |
|
Rotate |
Support |
|
Defog |
Support |
|
LDC |
N/A |
|
Smart Feature |
|
|
Basic Event |
Motion detection , Video Shlter |
|
Smart Event |
Smart motion detection, Line crossing, intrusion, region entrance, region exiting ( support alarm triggering by specified target types (human ,vehicle) ) |
|
Face Detection |
N/A |
|
Network |
|
|
Network Storage |
NAS ( NFS, SMB/CIFS ) , ANR |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
|
System Compatibility |
Onvif (Profile S, Profile G, T) , SDK |
|
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
|
User |
Up to 40 users |
|
Web Browsers |
Plug-in required live view: IE 10, IE 11 |
|
Mobile Surveillance |
IOS, Android |
|
Interface |
|
|
Communication Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-board Storage |
Up to 256GB |
|
MIC |
Support |
|
Speaker |
N/A |
|
Audio I/O |
1/1 |
|
Alarm I/O |
1/1 |
|
Reset Button |
Support |
|
General |
|
|
Operating Conditions |
-40°C ~ 60°C (-40°F ~ 140°F) |
|
Power Supply |
DC12V ± 25% |
|
POE |
PoE (802.3 af) |
|
Power Consumption |
Basic: 2.7 W (12 VDC); 3.5W (PoE) Max: 5.7 W (12 VDC); 7.4 W (PoE) |
|
Protection Level |
IP67 |
|
Material |
Metal |
|
Dimensions |
Φ 106.6 × 51.1 mm (Φ 4.19'' × 2.01'') |
|
Gross Weight |
465 g (1.02 lb) |
