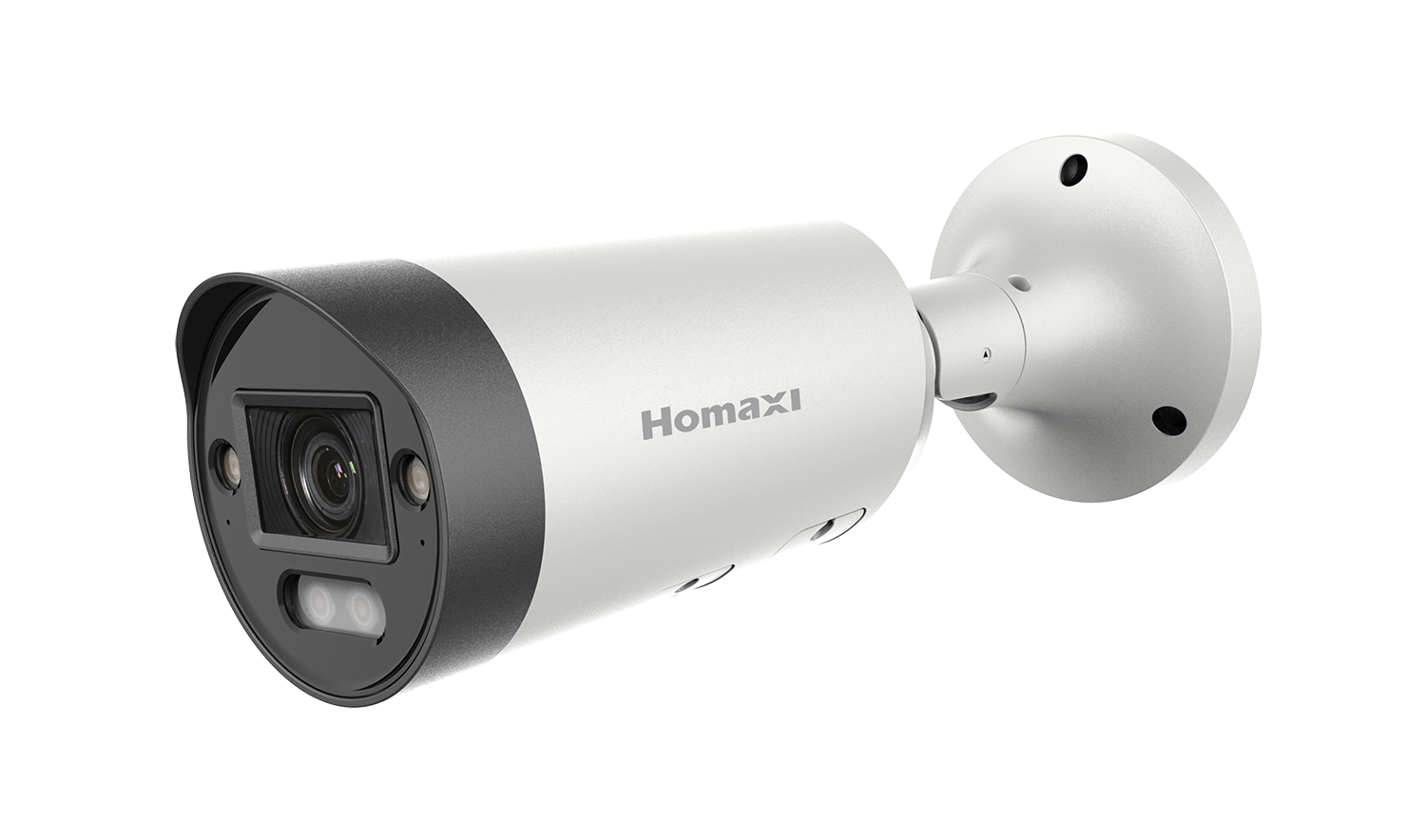

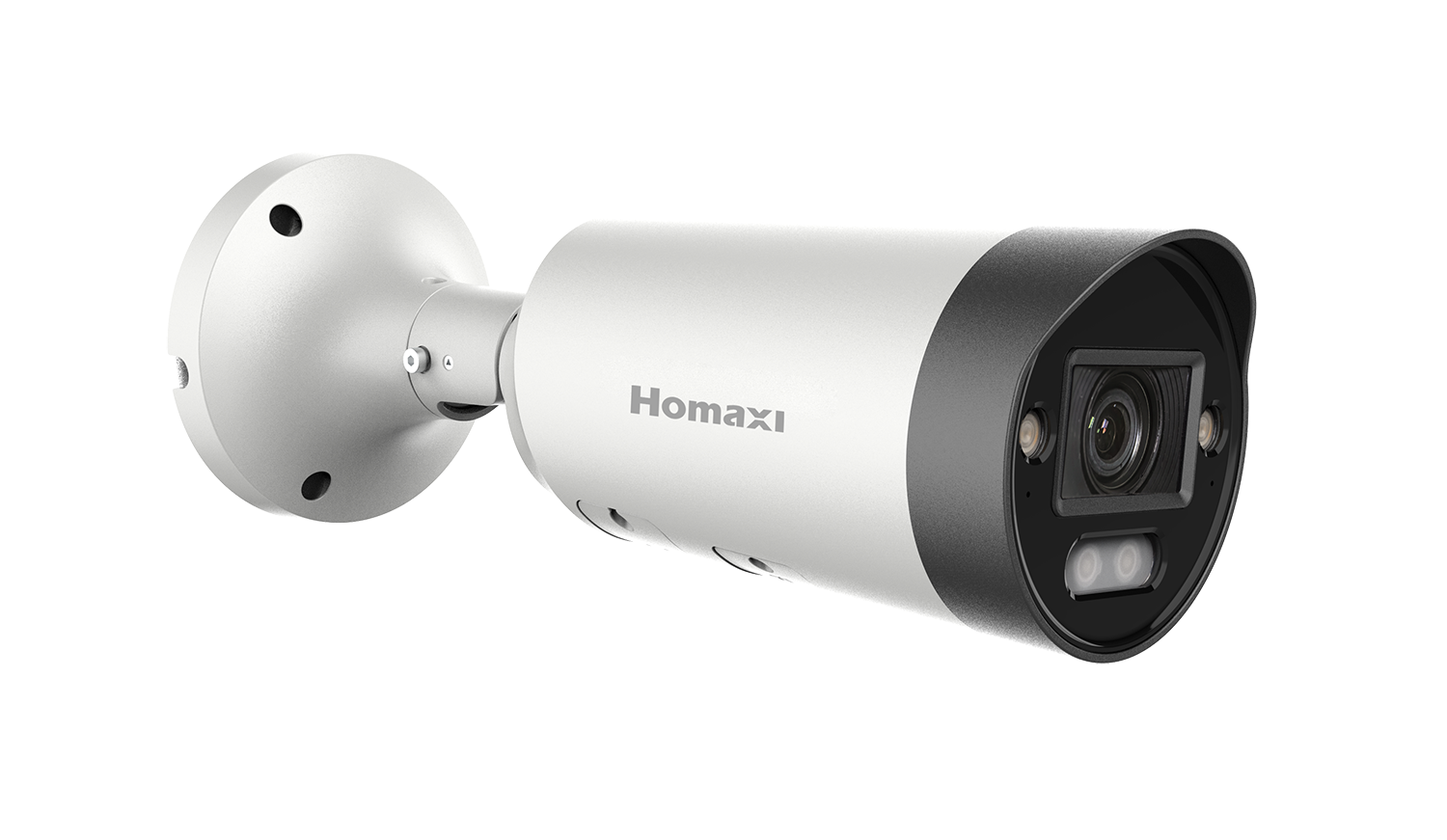

IPC8BV6R4-LPR
IPC8BV6R4-LPR
- 1/1.8-in CMOS sensor
- Efficient H.265+ compression technology to save bandwidth and storage
- 4MP (2688×1520) at 60fps maximum resolution
- 8mm to 32mm motorized varifocal lens
- Dual illumination types: 850nm IR LED and warm light LED
- Maximum Illumination distance for video monitoring 100m/328ft
- Supports perimeter protection detection
- Built-in microphone and speaker
- Supports RS-485, 12V DC power output, Wiegand, video output interfaces and connection to external devices
- IP67 water and dust resistant
|
Camera |
|
|
Image Sensor |
1/1.8" Progressive Scan CMOS Sensor |
|
Min. Illumination |
Color: 0.002 Lux ( F1.6 , AGC ON ) , 0 Lux with light |
|
Illumination Distance |
100 m ( IR light ) 70 m ( warm light ) |
|
Strobe Light |
N/A |
|
Smart IR |
Support |
|
Pan/Tilt/Rotation Range |
Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|
Lens |
|
|
Focal Length |
8 ~ 32 mm |
|
Aperture |
F1.7 to F1.73 |
|
FOV |
Horizontal FOV:47° ~ 22°，vertical FOV:27° ~ 12°， diagonal FOV:56° ~ 24° |
|
Lens Mount |
Integrated |
|
Compression Standard |
|
|
Video Compression |
H.264/H.264+/H.265/H.265+/MJPEG (Sub) |
|
H.264 Codec Profile |
Base/Main/High profile |
|
H.265 Codec Profile |
Main Profile |
|
Video Bit Rate |
11 Kbps ~ 10Mbps |
|
Triple Streams |
Support |
|
Audio Compression |
G.711A/G.711U |
|
Audio Bit Rate |
64 Kbps |
|
Image |
|
|
Max. Image Resolution |
4M (2688 × 1520) |
|
Main Stream |
50 Hz: 25 fps (2688 × 1520, 2560 × 1440,2048 × 1536, 1920 × 1080,1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440,2048 × 1536, 1920 × 1080,1280 × 720) |
|
Sub Stream |
50Hz: 25fps 720P (1280 × 720) 25fps D1 (704 × 576),25fps CIF (352 × 288) 60Hz: 30fps 720P (1280 × 720) 30fps D1 (704 × 480),30fps CIF (352 × 240) |
|
Third Stream |
50Hz: 25fps CIF (352 × 288) 60Hz: 30fps CIF (352 × 240) |
|
Image Setting |
Brightness/Contrast/Saturation/Hue/Sharpness |
|
Shutter Time |
Auto/Manual, 1/3 ~ 1/100000s |
|
Day/Night |
IR cut filter |
|
Wide Dynamic Range |
130dB |
|
Digital noise Reduction |
2D/3D DNR |
|
BLC |
Support |
|
HLC |
Support |
|
ROI |
Support |
|
Smart Feature |
|
|
Basic Event |
Motion detection, video tampering |
|
Smart Event |
Smart motion detection, line crossing detection, area intrusion, region entrance, region exiting ( support alarm triggering by specified target types ( human and vehicle ) ) Scene change detection |
|
Road Traffic and Vehicle Detection |
Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Black list and White list: up to 10,000 records LPR Countries/Regions: North America Vehicle Capture Speed: Front installation in checkpoint scenario: up to 60 km/h Side installation: up to 60 km/h |
|
Network |
|
|
Network Storage |
NAS (NFS, SMB/CIFS) |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
|
System Compatibility |
Onvif (Profile S, Profile G, T) , SDK |
|
Security |
User authentication,IP address filtering,Region splice |
|
User |
Up to 40 users |
|
Web Browsers |
Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
|
Mobile Surveillance |
Android, IOS |
|
Interface |
|
|
Communication Interface |
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
|
On-board Storage |
Up to 512GB |
|
MIC |
Support |
|
Speaker |
Support |
|
Audio I/O |
1/1 |
|
Alarm I/O |
2/2 |
|
RS-485 |
Support |
|
Reset Button |
Support |
|
Power Output |
Support |
|
Wiegand |
Support |
|
Video Output |
Support |
|
General |
|
|
Operating Conditions |
(-40°C ~ 60°C) (-40°F ~ 140°F ) |
|
Power Supply |
DC12V ± 25% |
|
POE |
PoE (802.3 at) |
|
Power Consumption |
MAX. 11W |
|
Protection Level |
IP67 |
|
Material |
Metal |
|
Dimensions |
Φ 4.1’’ x 11'' (105 x 278.9 mm) |
|
Gross Weight |
3.17lb (1440 g) |
