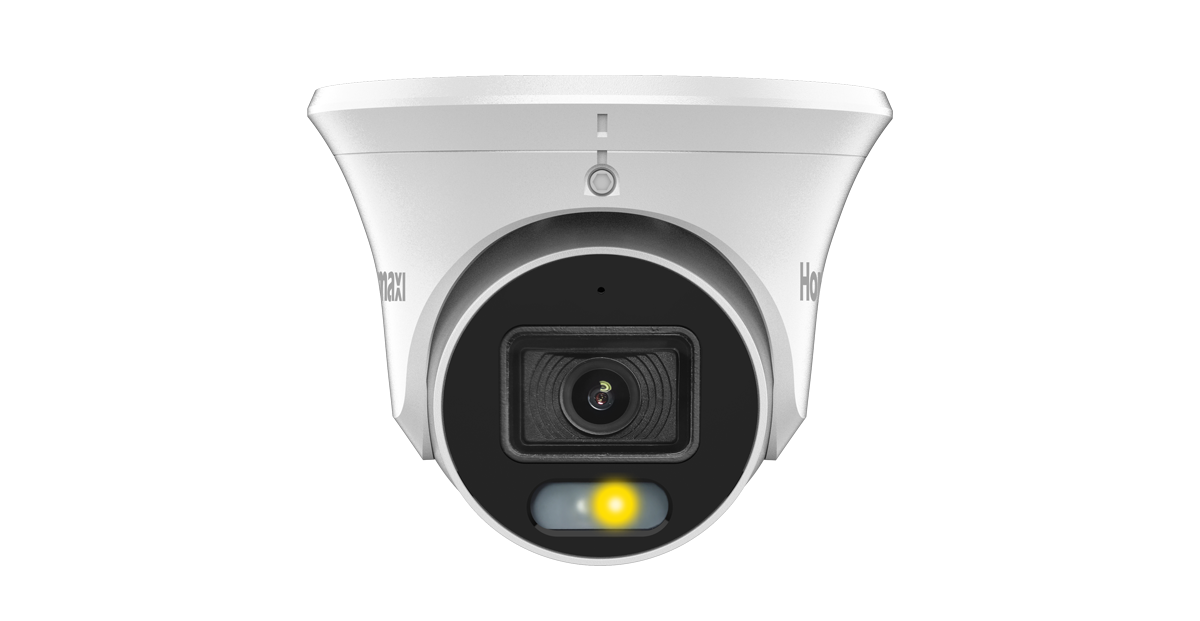

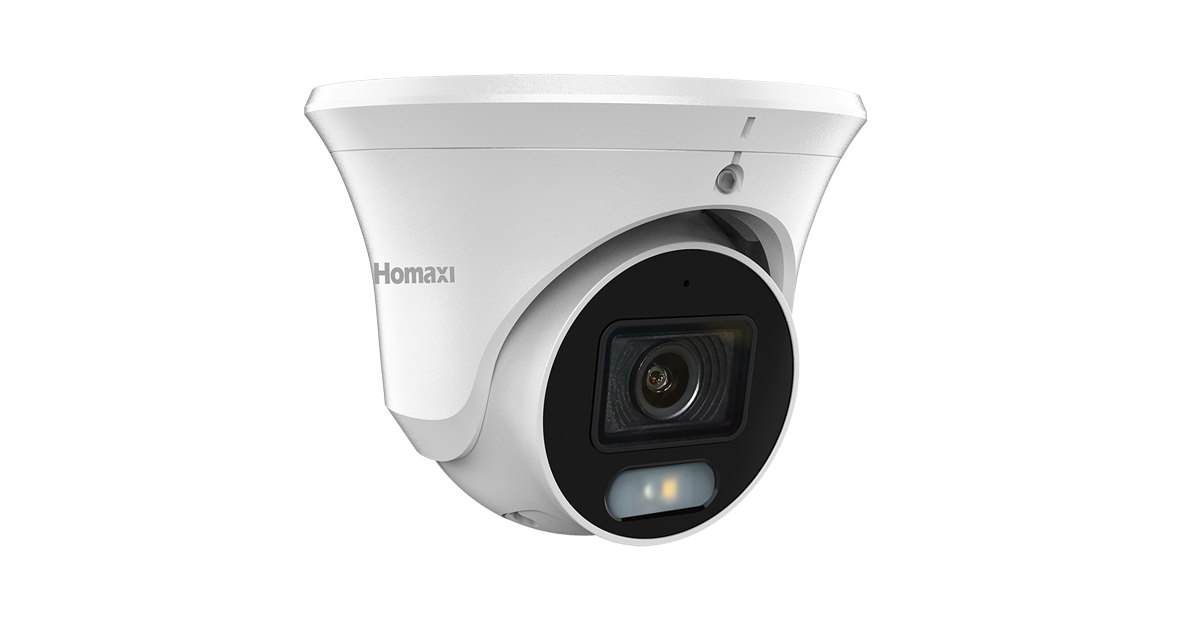

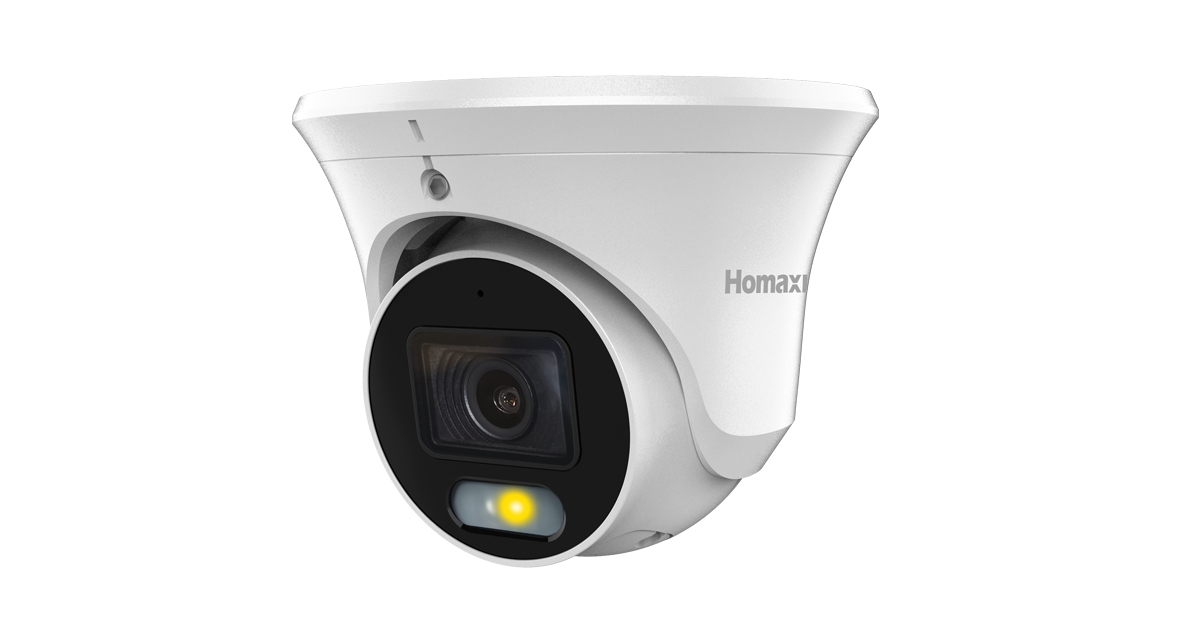

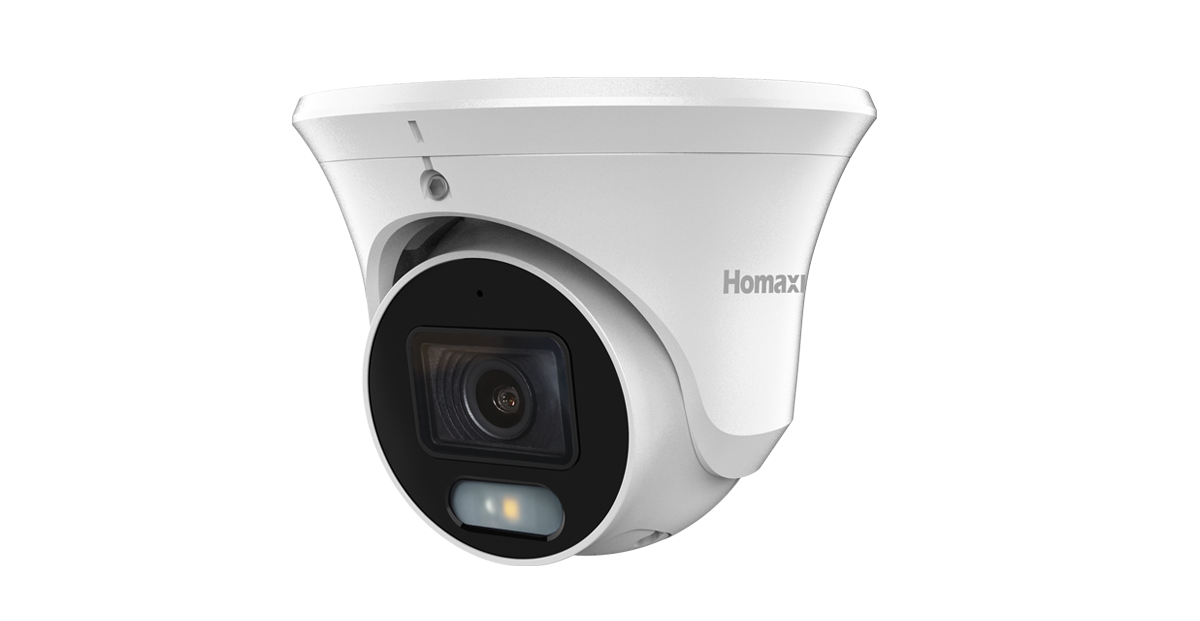

IPC4TF2AR6-DL1
IPC4TF2AR6-DL1
- High quality imaging with 6MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Built-in microphone
|
Camera |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS Sensor |
|
Min. Illumination |
Color: 0.006 Lux (F1.6 , AGC ON) , 0 Lux with light |
|
Illumination Distance |
30m (IR light) 30m (warm light) |
|
Strobe Light |
N/A |
|
Smart IR |
Support |
|
Pan/Tilt/Rotation Range |
Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotation: 0° ~ 360° |
|
Lens |
|
|
Focal Length |
2.8/3.6 mm |
|
Aperture |
F1.6 |
|
FOV |
2.8mm@F1.6 Horizontal FOV: 109°, Vertical FOV: 58°, Diagonal FOV: 130 ° 3.6mm@F1.6 Horizontal FOV: 91.5°, Vertical FOV: 46°, Diagonal FOV: 109 ° |
|
Lens Mount |
M12 |
|
DORI |
|
|
DORI |
2.8mm@F1.6 , D:73m,O:29.2m,R:14.6m,I:7.3m |
|
Compression Standard |
|
|
Video Compression |
H.264/H.264+/H.265/H.265+/MJPEG |
|
H.264 Codec Profile |
Base/Main/High profile |
|
H.265 Codec Profile |
Main Profile |
|
Video Bit Rate |
16Kbps~13368Kbps |
|
Triple Streams |
Support |
|
Audio Compression |
G.711A, G.711U |
|
Audio Bit Rate |
64 Kbps |
|
Image |
|
|
Max. Image Resolution |
6MP(3296 × 1856) |
|
Main Stream |
20fps (3296 × 1856,2880 × 1620,2560 × 1440,1920 × 1080) |
|
Sub Stream |
50Hz:20fps (1280 × 720,704 × 576,352 × 288) 60Hz:20fps (1280 × 720,704 × 480,352 × 240) |
|
Third Stream |
50Hz:20fps(352 × 288) 60Hz:00fps(352 × 240) |
|
Image Setting |
Brightness/Contrast/Saturation/Hue/Sharpness |
|
Shutter Time |
Auto/Manual, 1/3 ~ 1/100000s |
|
Day/Night |
IR Cut Filter |
|
Wide Dynamic Range |
120 dB |
|
Digital Noise Reduction |
2D/3D DNR |
|
BLC |
Support |
|
HLC |
Support |
|
ROI |
Support |
|
Rotate |
Support |
|
Smart Feature |
|
|
Basic Event |
Motion detection, Tampering |
|
Smart Event |
Smart motion detection, Line crossing, Area intrusion, Region Entrance, Region Exiting（human/vehicle classification）, Fast Moving, Blurred Detection |
|
Face Detection |
Support |
|
Network |
|
|
Network Storage |
NAS |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
|
System Compatibility |
onvif（Profile S, Profile G，Profile T)，CGI |
|
Security |
User authentication,IP address filtering,Region Splice |
|
User |
Up to 10 user |
|
Web Browsers |
Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
|
Mobile Surveillance |
iPhone, iPad, Android devices |
|
Active Deterrence |
|
|
Red/Blue Light Warning |
N/A |
|
Sound Warning |
N/A |
|
Interface |
|
|
Communication Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-board Storage |
up to 512GB |
|
MIC |
Support |
|
Speaker |
N/A |
|
Audio I/O |
N/A |
|
Alarm I/O |
N/A |
|
Reset Button |
Support |
|
General |
|
|
Operating Conditions |
( -40°C ~ 60°C ) ( -40°F ~ 140°F ) Humidity 95% or less ( non-condensing ) |
|
Power Supply |
DC12V ± 10% |
|
POE |
PoE (802.3 af) |
|
Power Consumption |
MAX. 5.8 W |
|
Protection Level |
IP67 |
|
Material |
Metal |
|
Dimensions |
Φ 103.5× 82.4 mm (Φ 4.07'' × 3.24'') |
|
Gross Weight |
450g (0.99lb) |
