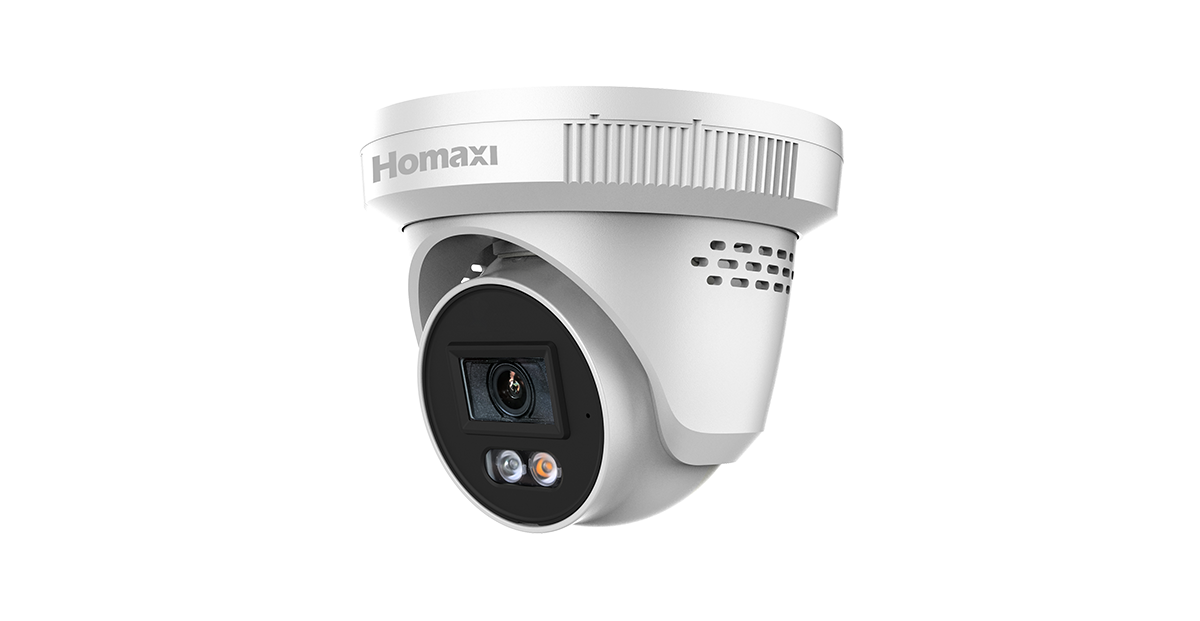

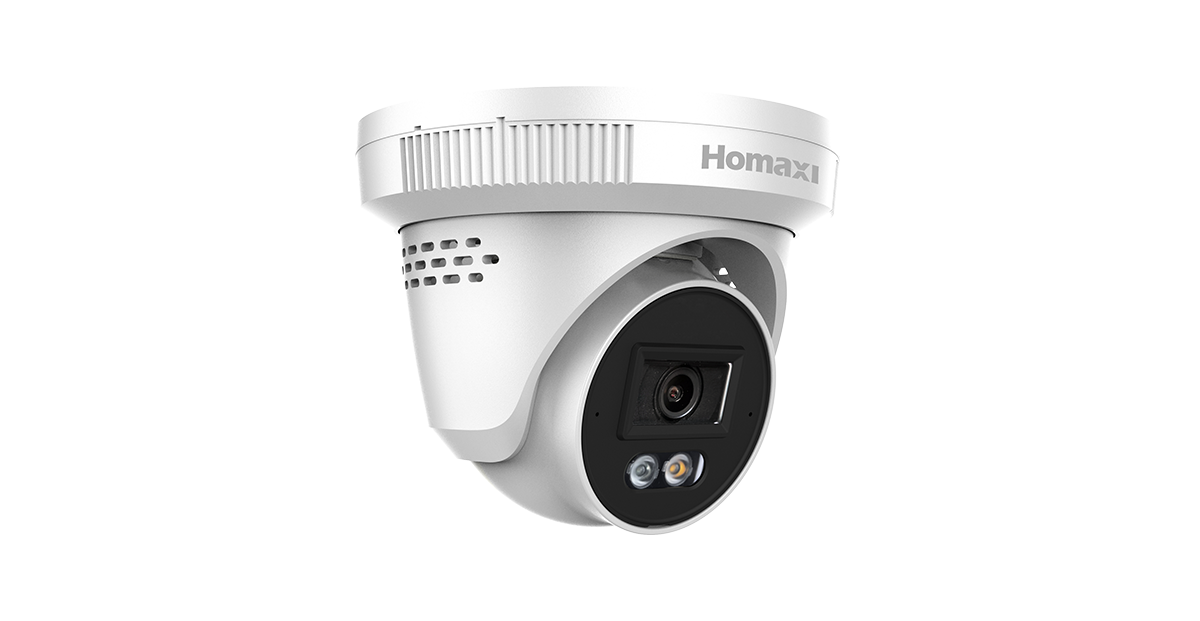

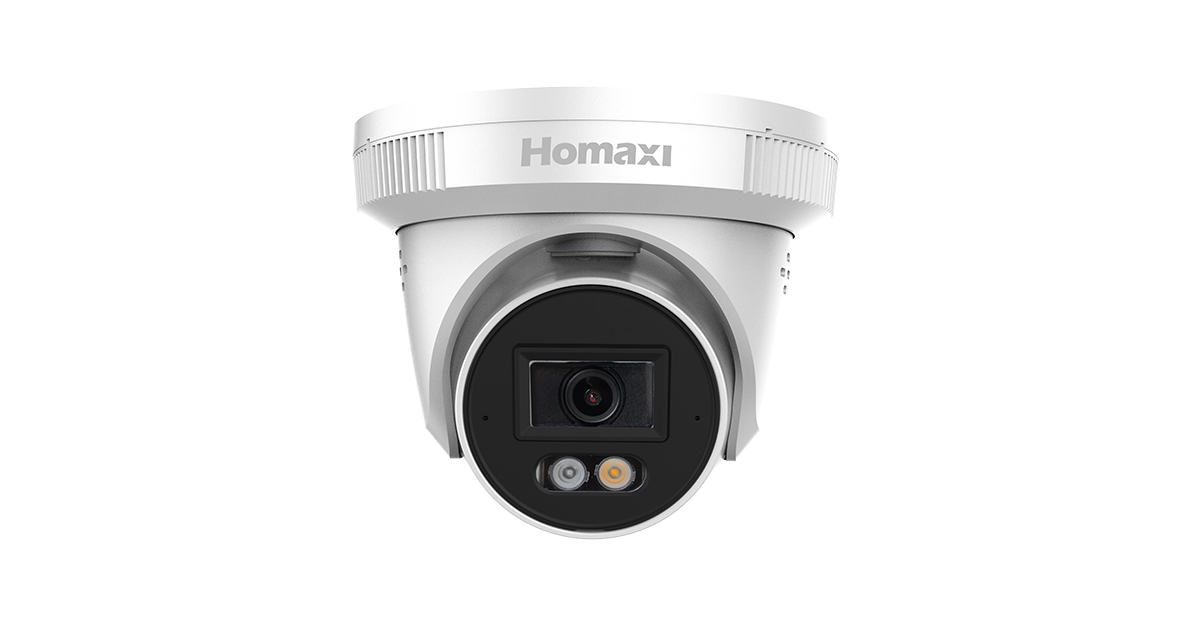

IPC4TF2R5-DL1
IPC4TF2R5-DL1
- High quality imaging with 5MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Built-in microphone for real-time audio security
- NDAA Compliant
|
Camera |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS Sensor |
|
Min. Illumination |
Color: 0.006 Lux (F1.6, AGC ON) , 0 Lux with light |
|
Illumination Distance |
30m (IR light) 30m (warm light) |
|
Strobe Light |
N/A |
|
Smart IR |
Support |
|
Pan/Tilt/Rotation Range |
Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotation: 0° ~ 360° |
|
Lens |
|
|
Focal Length |
2.8/3.6 mm |
|
Aperture |
F1.6 |
|
FOV |
2.8 mm @ F1.6 Horizontal FOV: 110°, Vertical FOV: 59°, Diagonal FOV: 132° |
|
Lens Mount |
M12 |
|
DORI |
|
|
DORI |
2.8 mm, D: 73.8m, O: 29.6m, R: 15.7m, I: 7.4m 3.6 mm, D: 94m, O: 37.6m, R: 18.8m, I: 9.4m |
|
Compression Standard |
|
|
Video Compression |
H.264/H.264+/H.265/H.265+/MJPEG (sub stream） |
|
H.264 Codec Profile |
Base/Main/High profile |
|
H.265 Codec Profile |
Main Profile |
|
Video Bit Rate |
11 Kbps ~ 10Mbps |
|
Triple Streams |
Support |
|
Audio Compression |
G.711A, G.711U |
|
Audio Bit Rate |
64 Kbps |
|
Image |
|
|
Max. Image Resolution |
5MP (2960 × 1664) |
|
Main Stream |
50Hz:20fps 5MP (2960 × 1664) 25fps 4MP (2688 × 1520) 25fps 4MP (2560 × 1440) 25fps 1080P (1920 × 1080) 60Hz:20fps 5MP (2960 × 1664) 30fps 4MP (2688 × 1520) 30fps 4MP (2560 × 1440) 30fps 1080P (1920 × 1080) |
|
Sub Stream |
50Hz: 25fps 720P (1280 × 720)25fps D1 (704 × 576) , 25fps CIF (352 × 288) 60Hz: 30fps 720P (1280 × 720)30fps D1 (704 × 480) , 30fps CIF (352 × 240) |
|
Third Stream |
50Hz: 25fps CIF (352 × 288) 60Hz: 30fps CIF (352 × 240) |
|
Image Setting |
Brightness/Contrast/Saturation/Hue/Sharpness |
|
Shutter Time |
Auto/Manual, 1/3 ~ 1/100000s |
|
Day/Night |
IR Cut Filter |
|
Wide Dynamic Range |
120 dB |
|
Digital Noise Reduction |
2D/3D DNR |
|
BLC |
Support |
|
HLC |
Support |
|
ROI |
Support |
|
Rotate |
Support |
|
Smart Feature |
|
|
Basic Event |
Motion detection , Video Shlter |
|
Smart Event |
Smart motion detection, Line crossing, intrusion, region entrance, region exiting ( support alarm triggering by specified target types (human ,vehicle) ) |
|
Face Detection |
N/A |
|
Network |
|
|
Network Storage |
NAS (NFS, SMB/CIFS) |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
|
System Compatibility |
Onvif (Profile S, Profile G, T) , SDK |
|
Security |
User authentication, IP address filtering, Video mask |
|
User |
40 |
|
Web Browsers |
Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
|
Mobile Surveillance |
IOS, Android |
|
Active Deterrence |
|
|
Red/Blue Light Warning |
N/A |
|
Sound Warning |
N/A |
|
Interface |
|
|
Communication Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-board Storage |
Up to 256GB |
|
MIC |
Support |
|
Speaker |
N/A |
|
Audio I/O |
N/A |
|
Alarm I/O |
N/A |
|
Reset Button |
Support |
|
General |
|
|
Operating Conditions |
(-40°C ~ 60°C) (-40°F ~ 140°F) |
|
Power Supply |
DC12V ± 10% |
|
POE |
PoE (802.3 af) |
|
Power Consumption |
Basic: 2.6 W (12 VDC); 3.4W (PoE) Max: 6.1 W (12 VDC); 7.9 W (PoE) |
|
Protection Level |
IP67 |
|
Material |
Metal |
|
Dimensions |
Φ 5.03'' × 4.12'' (Φ 128 × 105.1mm) |
|
Gross Weight |
1.54 lb ( 700g) |
